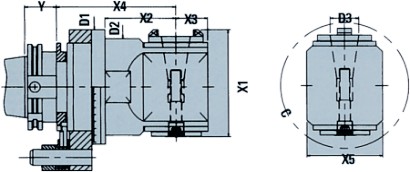

Y = According to shank & machine type |
| Power | m | DIN/ISO/BT/CAT | |||||||||||||||||||
| Type | X1 | X2 | X3 | X4 | X5 | D1 | D2 | C | D3 | min | kW | Nm | I/O | Kg | 30 | 35 | 40 | 45 | 50 | ||
| CEC30L1 | 122 | 73 | 35 | 131 | 84 | 130 | 115 | 140 | ISO30 | 3500 | 4 | 40 | 1÷1 | 10 | X | X | S | S | S | ||
| CEC30L2 | 122 | 127 | 35 | 185 | 84 | 130 | 115 | 140 | ISO30 | 3500 | 4 | 40 | 1÷1 | 12 | X | X | S | S | S | ||
| CEC40L1 | 158 | 104 | 60 | 175 | 124 | 170 | 165 | 190 | ISO40 | 3000 | 8 | 150 | 1÷1 | 20 | X | X | X | X | S | ||
| CEC40L2 | 158 | 151 | 60 | 222 | 124 | 170 | 165 | 190 | ISO40 | 3000 | 8 | 150 | 1÷1 | 25 | X | X | X | X | S | ||
| CEC50L1 | 240 | 124 | 78 | 149 | 160 | 240 | 160 | 280 | ISO50 | 2000 | 14 | 204 | 1÷1 | 40 | X | X | X | X | S | ||
| Key | |
| S: | Standard |
| R: | On Request |
| X: | Not Available |
