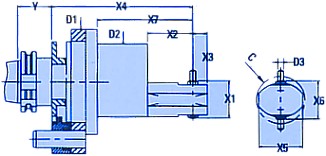

Y = According to shank & machine type

													Power	Couple		m	DIN/ISO/BT/CAT
Type	X1	X2	X3	X4	X5	X6	X7	C	D1	D2	D3	min	kW	Nm	I/O	Kg	30	35	40	45	50
CDP02L1	17	34	14	139/182	20	-	87	21	80	98	2	8000	1	4.5	1÷2.5	3-4	S	S	S	S	S
CDP03L1	20	36	20	146/189	27	-	94	27	80	98	3	6400	1	4.5	1÷2	3	S	S	S	S	S
CDP04L1	26	54	12	57/200	36	-	105	36	80	98	4	6400	1	4.5	1÷3	4	S	S	S	S	S
CDP05L1	31	52	16	147/190	41	-	95	42	80	98	5.4	5000	1	4.5	1÷1.6	5	S	S	S	S	S
CDP06L1	37	46	15	141/184	45	40	89	51	80	98	6	8000	1	4.5	1÷2.5	4-7	S	S	S	S	S
CDP06L2	37	74	15	169/212	45	40	117	51	80	98	6	8000	1	4.5	1÷2.5	5-8	S	S	S	S	S
CDP06L3	37	102	15	197/240	45	40	145	51	80	98	6	8000	1	4.5	1÷2.5	7-10	S	S	S	S	S
CDP08L1	39	69	20	190	50	-	130	51	90	130	8	6000	1.2	5.2	1÷1.5	9	X	X	S	S	S
CDP08L2	39	97	20	220	50	-	158	51	90	130	8	6000	1.2	5.2	1÷1.5	10	X	X	S	S	S
CDP08L3	39	125	20	250	50	-	186	51	90	130	8	6000	1.2	5.2	1÷1.5	11	X	X	S	S	S
CDP10L1	44	80	23	254	59	48	166	58	116	130	10	4500	2	18	1÷1.5	12	X	X	S	S	S
CDP10L2	44	110	23	284	59	48	196	58	11	130	10	4500	2	18	1÷1.5	13	X	X	S	S	S
CDP10L3	44	140	23	314	59	48	226	58	116	130	10	4500	2	18	1÷1.5	15	X	X	S	S	S
CDP13L1	67	115	30	192	74	79	130	98	105	130	13	3000	2.5	18	1÷2	7	X	X	S	S	S
CDP13L2	67	201	30	278	74	79	216	98	105	130	13	3000	2.5	18	1÷2	7	X	X	S	S	S

Key
S:	Standard
R:	On Request
X:	Not Available
