The BMR tool holders have been especially designed for multispindle heads, where close
spindle distances are difficult.
By their rigid and compact design, the tool holders are very well adapted to high speed
machining.
|

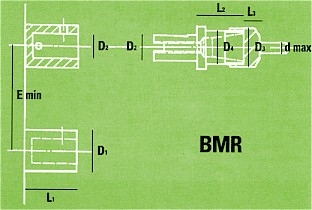

Spindles |
Toolholders |
Collet |
|
Type |
d1 |
d2 |
L1 |
E min |
d3 |
d4 |
d max |
L2 min |
L3 |
Type |
|
BMR 0.20 |
8.5 |
4 |
13 |
9 |
8.5 |
7 |
3 |
20.5 |
4.5 |
603 |
|
BMR 0.30 |
9.5 |
4.5 |
13 |
10 |
9.5 |
8 |
3.5 |
22 |
5 |
703 |
|
BMR 0.40 |
11 |
5 |
13 |
11.5 |
10.5 |
9 |
4.3 |
22 |
5 |
803 |
|
BMR 0.50 |
13 |
7 |
16 |
14.5 |
12 |
10 |
5 |
20 |
5 |
ER 8 |
|
BMR 10 |
19 |
11 |
20 |
20.5 |
18.7 |
14 |
7 |
21 |
6 |
ESX 12 |
|
BMR 20 |
24 |
14 |
25 |
26.5 |
22 |
19 |
10 |
27 |
9 |
ESX 16 |
|
BMR 30 |
28 |
16 |
28 |
28.5 |
28 |
24 |
13 |
33 |
10.5 |
ESX 20 |
|
BMR 40 |
31 |
18 |
26 |
32.5 |
35 |
30 |
16 |
37 |
11 |
ESX 25 |
|
BMR 50 |
50 |
28 |
29 |
62.5 |
50 |
40 |
20 |
41 |
12 |
ESX 32 |
|
