X-Series Technical Data

Features					Dimension						DIN/ISO/BT/CAT
Model	I/O	n	n max	P	Collet	d1	D	D1	L	L1	m	30	35	40	45	50	60
X635	1÷5	24000	30000	1.7	ESX12	0.5-7	63	19	99	23.5	2	S	S	R	X	X	X
X766	1÷6	25000	30000	2.8	ETS14	0.5-8	76	22	102	21	3.1	R	R	S	S	S	X
X9810	1÷10	36000	40000	2	ETS14	0.5-8	98	22	115.5	21	5	X	R	S	S	S	X
X765	1÷5	18000	22000	3.5	ESX16	0.5-10	76	32	111	30	3.5	R	R	S	S	S	X
X986	1÷6	16000	20000	4.5	ESX20	1-13	98	35	124	32.5	5.5	X	X	S	S	S	X
X1055	1÷5	13000	17000	6.4	ESX25	1-16	105	42	137.5	32.5	6.5	X	X	S	S	S	X
X1205	1÷5	12000	15000	7	ESX32	2-20	120	50	141	38	10.5	X	X	R	S	S	X
X1505	1÷5	10000	12000	8	OZ1837	4-32	150	72	177	51	15	X	X	X	R	S	X

Option 310: High pressure upon request

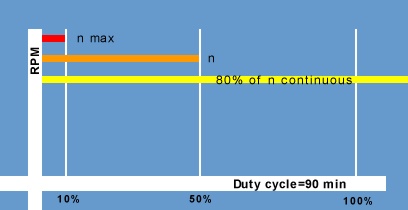

Key I/O: Input-Output n: rpm 50% DC n max: rpm 10% DC P: power in kW PR max: Pressure m: weight in kg D-L: in mm S: Standard R: On Request X: Not Available
