Number of Stations	2-3-4
Transmitting Power	7 kW
Transmitting Torque	110 Nm
Max Rotation Speed	16000 RPM
Repeat of Spindle Position	0.01
Precision of Positioning	0.01mm
Indexing Time 1/6 of Rotation	0.8

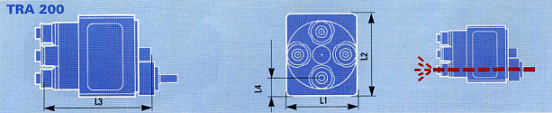

Dimensions	L1 240 mm L2 290 mm L3 370 mm L4 64 mm - øD mm
Weight without Tool	100
Coolant Through	50 bars Option 100 bars
Oil Pressure for Turret Index	20 - 50 bars
